商品の詳細:
お支払配送条件:
|
| 名前: | ケーブル固定金具 | 定格速度: | 0.25-2,5m/s |
|---|---|---|---|
| 該当する: | エレベーター部品 | ビジネスタイプ: | メーカー |
| 保証時間: | 12ヶ月 | モデル: | ケーブル固定金具 |
| タイプ: | ケーブル固定金具 | 証明: | GB/CE |
| 定格負荷: | 1000-2500kg |
1000-2500kg Rated Load Cable Clamp Lift Spare Parts 0.25-2.5m/S Speed
Parameter Table
| ARB-A | ARB-B1 | ARB-C | ||||
| Traction ratio | 1:1 | 2:1 | 1:1 | 2:1 | 1:1 | 2:1 |
| Rated speed(m/s) | 0.25~5.0 | 0.25~2.5 | 0.25~3.0 | 0.25~1.5 | 0.25~2.5 | 0.25~1.25 |
| System mass(excluding rated mass)(kg) | 675~4300 | 1350~8600 | 2100~7100 | 4200~14200 | 2100~11000 | 4200~22000 |
| Rated Mass(kg) | 320-1000 | 640~2000 | 1000~1750 | 2000~3500 | 1000-2500 | 2000~5000 |
| Traction rope diameter d(mm) | Φ8-Φ16 | Φ8-Φ16 | Φ8-Φ16 | |||
| Traction rope outermost distance(mm) | ≤172 | ≤172 | ≤192 | |||
| UCMP speed(m/s) | ≤1.5 | ≤1.2 | ≤1.2 | |||
| ACOP speed(m/s) | ≤6.93 | ≤3.23 | ≤4.22 | ≤2.05 | ≤3.32 | ≤1.66 |
| The maximum tilt angle(clockwise) | 45° | 45° | 45° | |||
| Electric interface |
Rated voltage 24V, rated current ≥3.5A/5A, standby power ≥6W Rated voltage24V,Rated current≥3.5A/A,Maintain stand-by power≥6W |
|||||

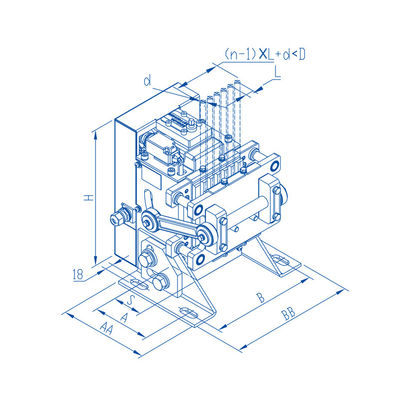

Interface table
|
Model Type |
Interface Serial number No. |
Installation interface Arrangement(mm) |
Mounting hole radius |
External dimension (LxWxH)(mm) |
||||||
| A | AA | B | BB | D | H | S | ||||
| ARB-A ARB-B1 | 1 | 130 | 200 | 201 | 241 | 117 | 328.5 | 88~89.5 | R9 | 283x241x328.5 |
| 2 | 130 | 200 | 240 | 280 | 157 | 328.5 | 88~89.5 | R9 | 283x280x328.5 | |
| 3 | 130 | 200 | 255 | 295 | 172 | 328.5 | 88~89.5 | R9 | 283x295x328.5 | |
| ARB-C | 4 | 130 | 200 | 283 | 323 | 192 | 328.5 | 88~89.5 | R9 | 283x323x328.5 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
