| 名前: | 2葉の側を開ける常磁気同期ドア操作機 | ドアの開口部: | 600~2000mm |
|---|---|---|---|
| オープニングウェイ: | サイドオープン | パッキング: | 木製の箱 |
| 応用: | パーツを持ち上げます | 交通機関: | 海の輸送 |
| 輸送モード: | EMSまたはUPS） /LCLによるLCL | ドアロック電圧: | ≤AC230V、≤DC110V |

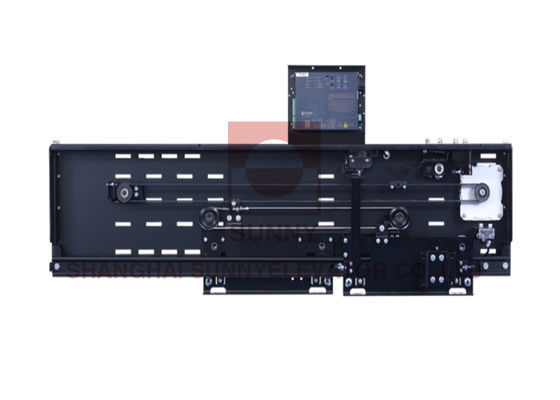

| モデル: | 2葉の側を開ける常磁気同期ドア操作機 | タイプ: | 2葉の側を開ける常磁気同期ドア操作機 |
| 製品: | 2葉の側を開ける常磁気同期ドア操作機 | 重さ: | ≤200kg |
High efficient and energy saving:
·Using permanent magnet synchronous motor, featured by high efficient driving,wide torque range and low running noise.
Safe and reliable:
·Equipped with car door lock, the car door can not be opened in non-level zone.
Thedoorhangerhasasafetyhooktopreventcollsionandfalloff, passed45kgso
pendulum test,which conforms to GB/T7588.1/2 standard requirement.
Data communication:
·Standard /O port. Reserving CAN communication port. Equipped with data communication function of master control system.
Easy debugging:
Full-closed-loop control technology.High control precision. Automatic generation of door openingand closing curves One-key debugging
Driven door weight:
Driven weight of landing door and car door <2ookg, Meet requirements ofvarious types of door panel weight.
High utilization rate of shaft:
Door operator structure is compact, lowering requirements to shaft space,adapting to smallshaftand wide opening door.
OMJ502A(CarTopInstallation)
| JJ | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1800 | 1850 | 1900 | 1950 | 2000 |
| A1L | 1035 | 1110 | 1185 | 1260 | 1335 | 1410 | 1485 | 1560 | 1635 | 1710 | 1785 | 1860 | 1935 | 2010 | 2085 | 2160 | 2235 | 2310 | 2385 | 2460 | 2535 | 2610 | 2685 | 2760 | 2835 | 2910 | 2985 | 3060 | 3135 |
| A2L | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 425 | 450 | 475 | 500 | 525 | 550 | 575 | 600 | 625 | 650 | 675 | 700 | 725 | 750 | 775 | 800 | 825 | 850 | 875 |
| A3L | 210 | 235 | 260 | 285 | 310 | 335 | 360 | 385 | 410 | 435 | 460 | 485 | 510 | 535 | 560 | 585 | 610 | 635 | 660 | 685 | 710 | 735 | 760 | 785 | 810 | 835 | 860 | 885 | 910 |
OMJ502B(Straight Beam Installation)
| JJ | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1800 | 1850 | 1900 | 1950 | 2000 |
| A1L | 1035 | 1110 | 1185 | 1260 | 1335 | 1410 | 1485 | 1560 | 1635 | 1710 | 1785 | 1860 | 1935 | 2010 | 2085 | 2160 | 2235 | 2310 | 2385 | 2460 | 2535 | 2610 | 2685 | 2760 | 2835 | 2910 | 2985 | 3060 | 3135 |
| A2L | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 425 | 450 | 475 | 500 | 525 | 550 | 575 | 600 | 625 | 650 | 675 | 700 | 725 | 750 | 775 | 800 | 825 | 850 | 875 |
| A3L | 210 | 235 | 260 | 285 | 310 | 335 | 360 | 385 | 410 | 435 | 460 | 485 | 510 | 535 | 560 | 585 | 610 | 635 | 660 | 685 | 710 | 735 | 760 | 785 | 810 | 835 | 860 | 885 | 910 |
Our elevator wire ropes meet special provisions and requirements. The configuration considers not only wire rope and rated load, but also traction size, resulting in tensile strength greater than the lift weight. The safety factor includes at least four wire ropes to prevent simultaneous breakage.
The elevator will automatically stop using electrical and mechanical safety devices. In case of power failure, elevator brakes engage automatically. Power supply departments typically provide advance notice for planned outages.
The door automatically restarts if touched during closing, with no danger. Anti-pinch switches prevent closure when obstruction is detected, and closing force is carefully regulated.
Elevators operate via counterweight wire ropes through traction drive, moving vertically on guide rails.
Our escalators feature integrated structures for precision and efficiency, designed for easier installation and commissioning.
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
