| 名前: | 経済的なスロットスイッチ | 該当する: | エレベーター機器 |
|---|---|---|---|
| ビジネスタイプ: | メーカー | 交通機関: | 海の輸送 |
| 製品名: | エレベーター部品 | 電圧: | 10...30VDC |
| モデル: | 経済的なスロットスイッチ | 製品: | 経済的なスロットスイッチ |
| 出力: | PNP または NPN | 温度の限界: | -20～+70°℃ |

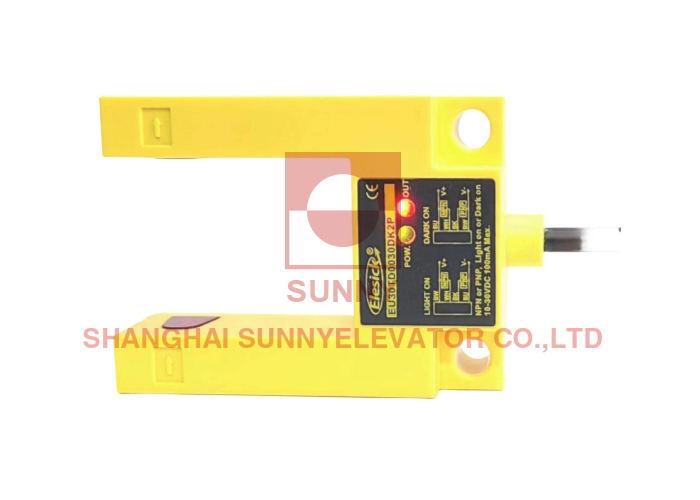

Economical Slot Switch - Compact & Cost-Efficient Switching Solution For Industrial Automation
Feature Description
High-speed response type
It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits
Multi-functional programmable output (NPN/PNP/ bright pass/dark pass)
Short response time, long service life, low price and high reliability
Protection grade IP65(IEC)
| Model | EU30TD0030DK2P |
| Power supply | 10...30VDC |
| Riple | <10% |
| Detected object | Φ2.0 Above metal objects |
| Sensitivity adjustment | fixed |
| Emission | Infrared(880nm) |
| Output | PNP or NPN |
| Output Characteristics | Light ON or Dark on |
| Max. Load Current | ≤100mA |
| No Load Current | 30mA or Less |
| Voltage Drop(Sensor On) | <2.5V |
| Response Time | ≤1ms |
| Short Circuit Protection | Yes |
| Electric Protections | Yes |
| Temperature Limits | -20 ～+70°℃ |
| Storage temperature and humidity | -40 ~ +80℃ 95% RH |
| Light Immunity | >100,000Lux |
| Protection Degree | En60529 IP65 |
| EMC | EN 12015, EN 12016 |
| Certification | CE |
| Connection Type | PVC Cable |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
